When selecting screws, the drive type (recess style) is often overlooked, yet it directly impacts assembly efficiency, torque transmission, tool compatibility, and long-term reliability. The wrong choice can lead to cam-out, tool damage, or even safety risks in the final product.
As an experienced fastener supplier, Taiyuanfeng offers customized solutions covering all major screw drive types, helping global customers optimize assembly processes and reduce rework costs.

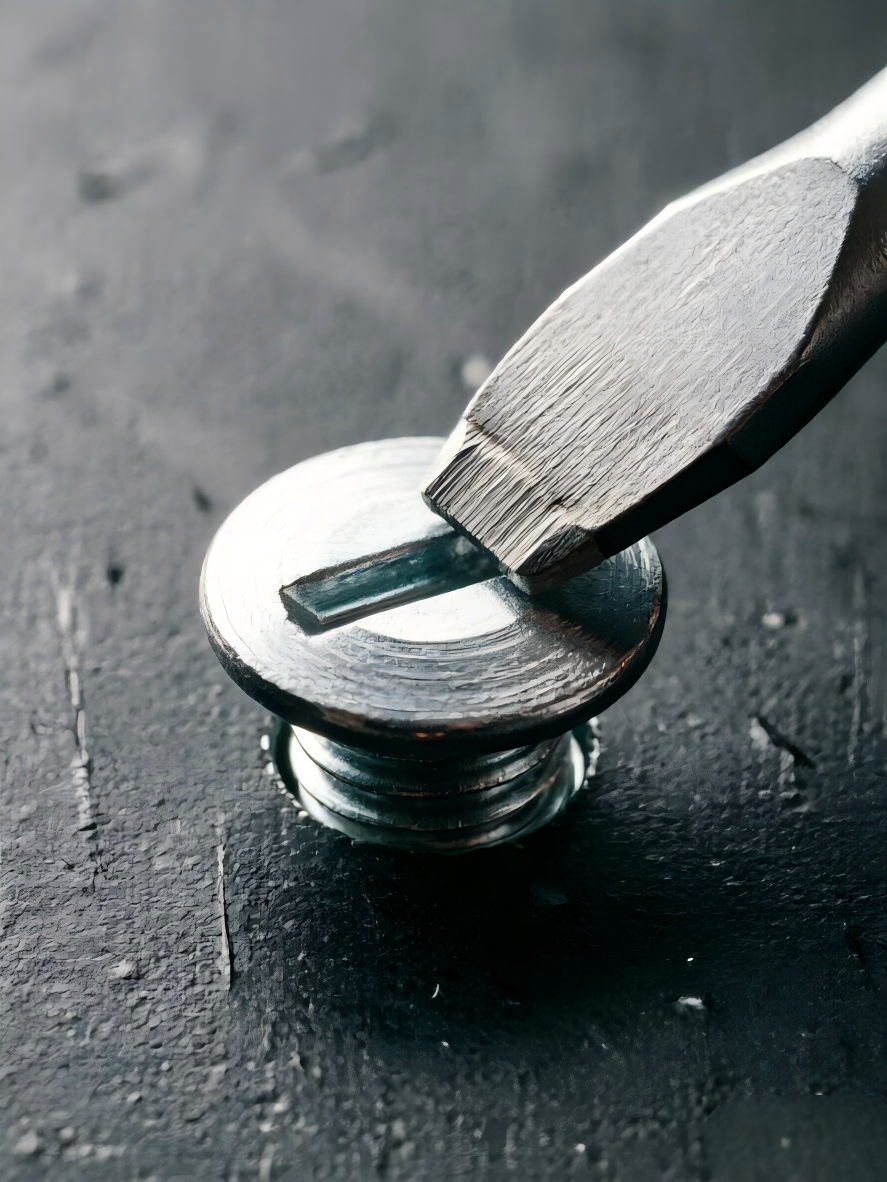

The slotted drive is the most traditional screw recess, featuring a single straight line. Its advantage is that any flat tool can be used, but it suffers from poor centering and high cam-out risk under torque.
Typical applications: Decorative hardware, antique machinery, low-voltage electrical terminals.
Taiyuanfeng can still produce precision slotted screws on demand, especially for the repair market and legacy equipment.

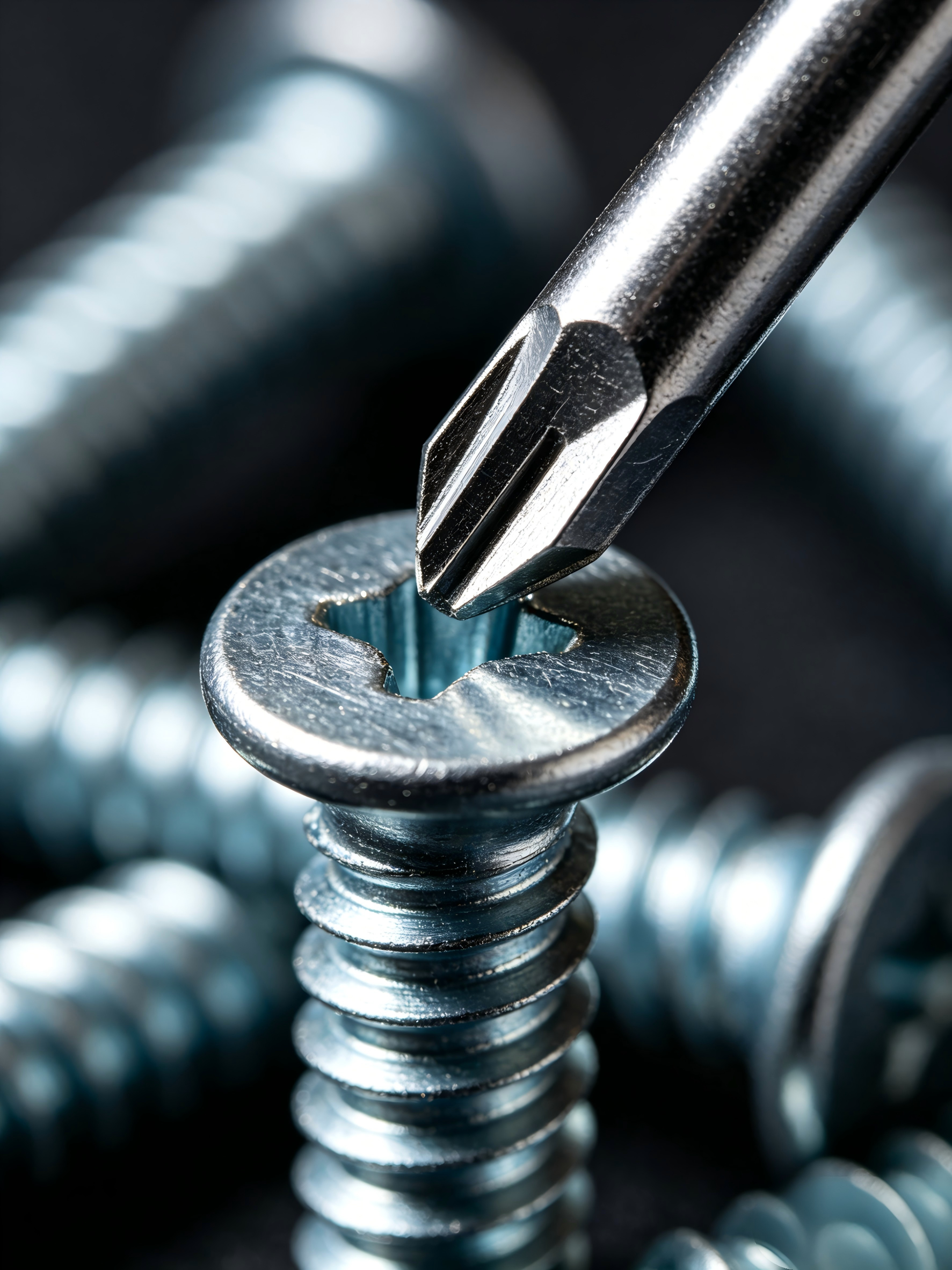

The Phillips drive is the most globally recognized screw recess, designed with a cross-shaped recess that offers self-centering. When torque exceeds a limit, the Phillips drive intentionally cams out to protect the screw head or workpiece surface.
Typical applications: Appliance assembly, electronic devices, automotive interiors, general hardware.
Taiyuanfeng provides Phillips drive screws compliant with DIN/ANSI standards, covering the full range from PH0 to PH3.
3. Pozidriv Drive

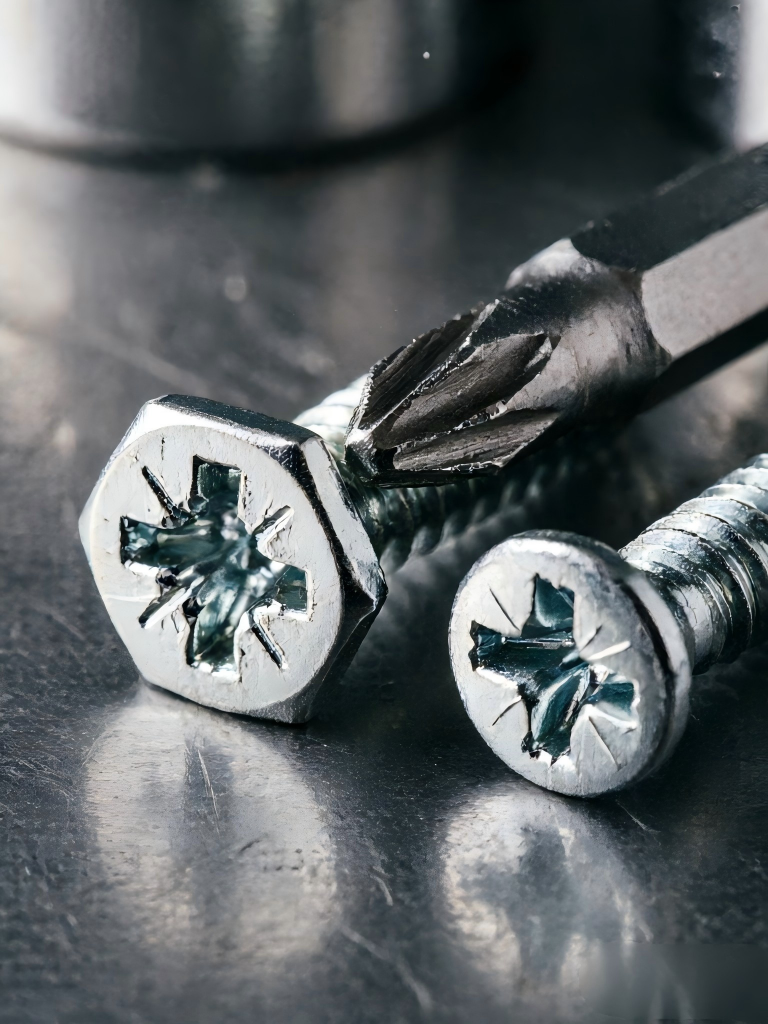

Pozidriv is often mistaken for Phillips, but its recess features additional radial indentations. Unlike Phillips, Pozidriv does not cam out, allowing higher torque transfer and reducing tool slip.
Typical applications: Furniture assembly, automotive braking systems, metal structures requiring high clamping force.
Note: Phillips drivers are not interchangeable with Pozidriv screws. Taiyuanfeng clearly marks the drive type on packaging to avoid confusion.
Torx uses a six-lobed star-shaped recess, delivering excellent torque transfer without cam-out forces. This drive type significantly reduces tool wear and allows for smaller head designs.
Typical applications: Automotive engines, hard disk drives, consumer electronics, high-strength steel structures.
Taiyuanfeng offers both standard Torx and Torx TR with a tamper-resistant pin, meeting security and anti-theft requirements.

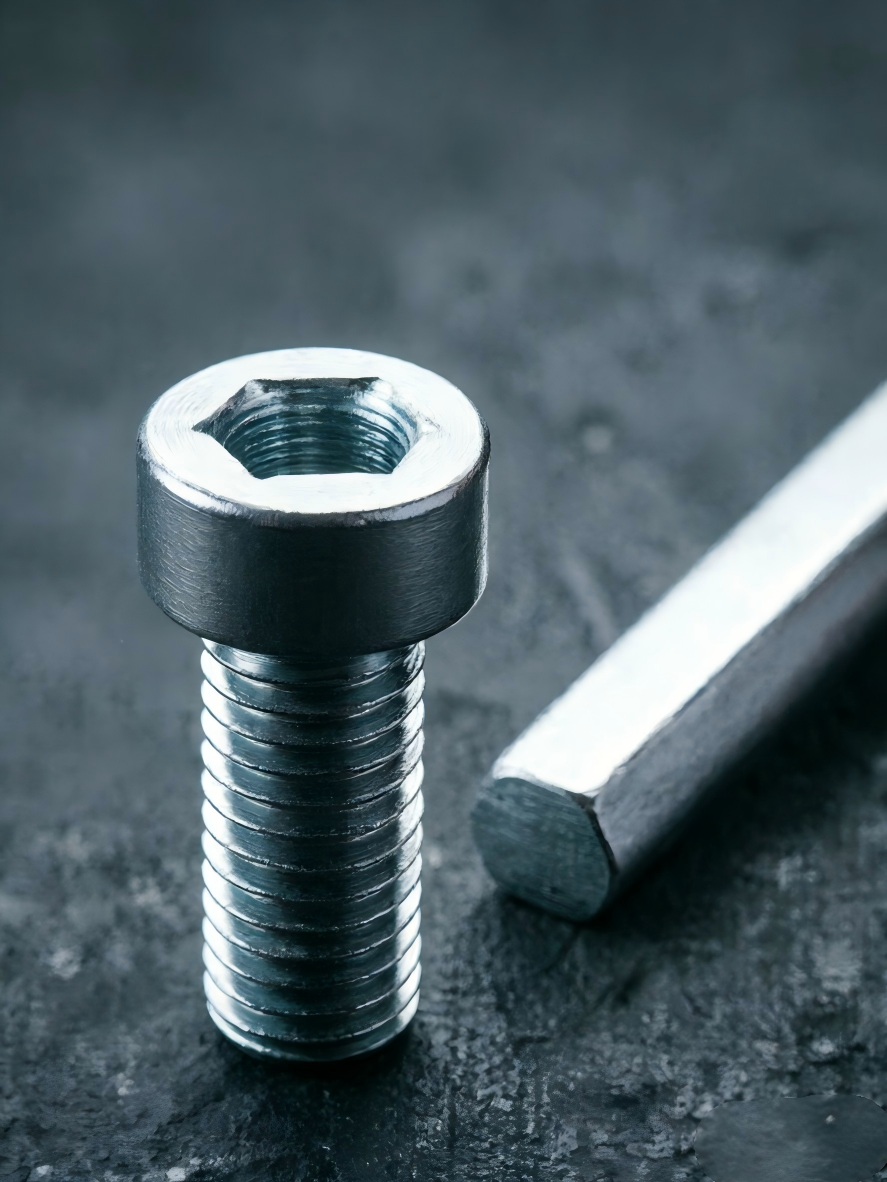

The hex socket drive features a hexagonal recess, operated with an Allen key or hex-bit driver. This drive type withstands very high torque without cam-out, making it ideal for precise torque control applications.
Typical applications: Machinery assembly, bicycle components, mold fixtures, high-load connections.
Taiyuanfeng produces metric and inch-size hex socket screws in materials including carbon steel, stainless steel, and alloy steel.

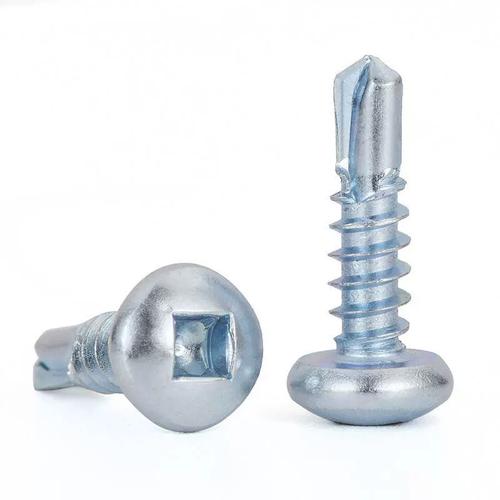

The square drive has four nearly vertical sides. The driver fits snugly and almost never cams out. It enables one-handed installation and provides excellent residual torque consistency.
Typical applications: Wood structures, fencing, railway ties, North American hardware.
As a globally oriented fastener company, Taiyuanfeng also supports Robertson square drive production, helping customers expand into the US and Canadian markets.
Consideration | Recommended Drive |
High assembly speed, easy centering | Phillips or Pozidriv |
Very high torque, no cam-out | Torx or Hex Socket |
Easy maintenance, common tools | Slotted or Phillips |
Tamper resistance / security needs | Torx TR or special head |
Woodworking / construction, one-hand operation | Square (Robertson) |
The engineering team at Taiyuanfeng can provide free screw drive selection advice based on your assembly line automation level, torque parameters, and working environment.
Complete product range: From Slotted to Torx, from M2 to M12 – covering all common and custom drive types.
Strict quality control: Every batch undergoes recess depth, torque testing, and hardness inspection to ensure driver compatibility.
Flexible custom capabilities: Non-standard drives, surface finishes (zinc plating, Dacromet, Geomet) and tamper-resistant designs available per drawing.
Professional export service: Supply with ISO, ASTM, DIN, JIS certifications, shipping to the EU, North America, Southeast Asia and beyond.
Whether you need million-quantity bulk orders or sample development, Taiyuanfeng supports you with stable quality and competitive pricing.
If you are looking for a reliable screw drive solution, please visit our official website or send your inquiry to our sales team. Provide your screw dimensions, material, drive type, and target quantity, and we will reply within 24 hours.
